Trane TRACE 3D Plus

by Trane Technologies

3D HVAC design software with automated load calculations, energy modeling, and LEED/ASHRAE 90.1 compliance wizards for commercial projects.

Trane TRACE 3D Plus - by Trane Technologies - Energy Modeling & Auditing Tools software - logo 6.4 - Good
Subscription · Contact for pricing Free Trial 29 Features 2 Integrations
Visit website → Buy from Trane Technologies

Media

www.trane.com

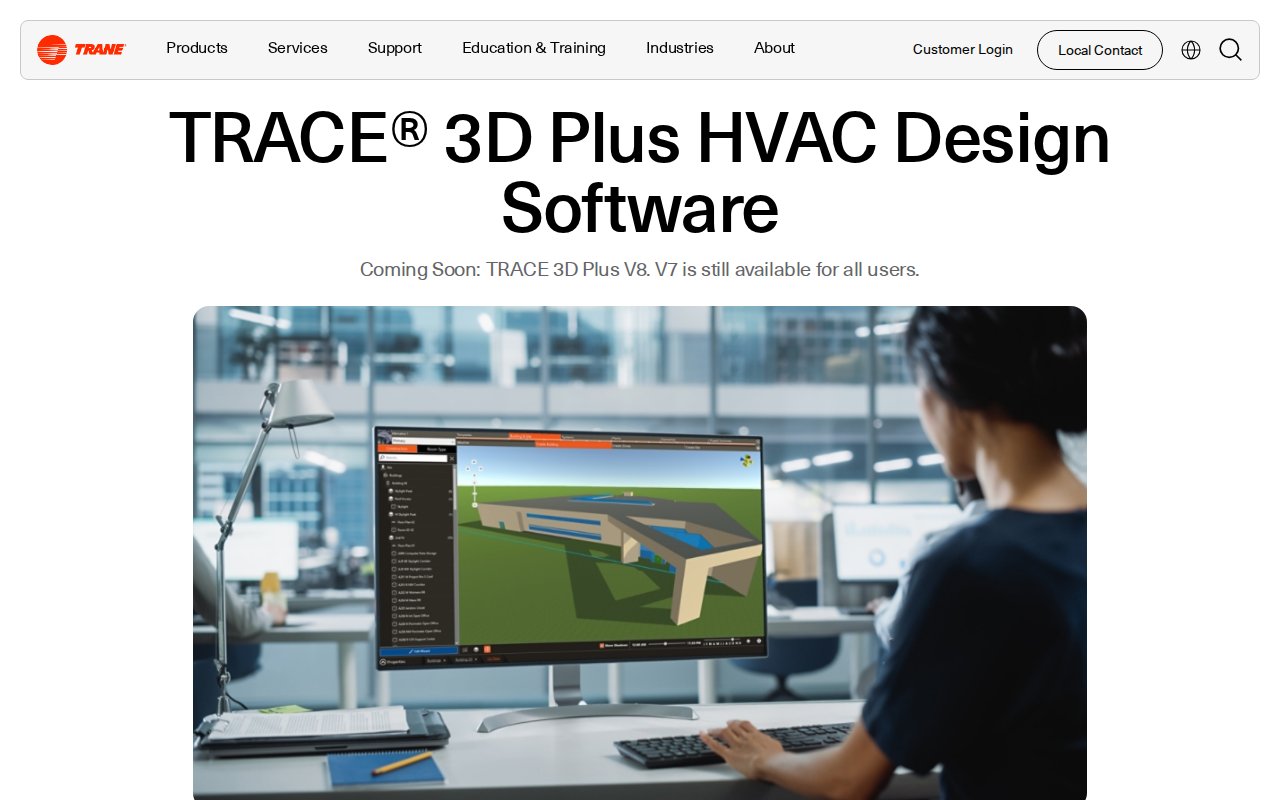

Trane TRACE 3D Plus - website image

About This Product

Trane TRACE 3D Plus delivers intuitive 3D HVAC design with automated thermal load analysis, equipment sizing, and comprehensive energy modeling. Compare up to 20 design alternatives simultaneously with economic analysis for carbon reduction and renewable energy optimization. Includes step-by-step guided wizards for LEED and ASHRAE 90.1 compliance.

FSH Score Breakdown

Ease of Use
7.0
Features
8.5
Support
8.0
Value
7.0
Integrations
5.0
AI Capabilities
2.5

Customer Reviews

Features

29 features confirmed across 8categories· Showing confirmed capabilities only

Compliance & Safety8features

Energy ModelingAdiabatic/thermal boundary toolDecarbonization TrackingDecarbonization analysisAirflow CalculationsAutomated fan calculationsCode ComplianceASHRAE 90.1 compliance wizardDuct DesignMulti-story floor modelingLeak Calculationautomated fan calculationsManual J Calculationsroom heating and cooling loads reportsASHRAE 62 Complianceleed and ashrae 90.1 compliance wizard

Estimating & Quoting5features

Digital TakeoffPDF floor plan importAssembly Builderundo/redo in building canvasSystem Design2d and 3d architectural and hvac system validationSpecification EditorPre-configured building themesAutoCAD Generation2D and 3D visualization

Platform & Customization5features

Data Importlibrary import/export (trl files)Multi-Locationmulti-story floor supportDocument ManagementLibrary managementCustom TemplatesUndo/Redo functionalityCustom API Accessadvanced electrification heat modeling (aahp, awhp)

Reporting & Analytics4features

ReportingReport generationAnalyticsData VisualizerEnergy Rate AnalysisEnergy analysisEconomic AnalysisEconomic and energy-efficient alternative exploration

Equipment & Asset Management4features

Equipment SelectionEquipment sizingHVAC Zoning Managementhot gas reheat and humidity controlsChiller EvaluationWater-cooled chiller implementationRemote MonitoringSystem configuration validation

Mobile & Field Tools1feature

AR Visualization2D and 3D visualization

AI & Automation1feature

Automation RulesDrag-and-drop workflows

Training & Education1feature

Manual J/S/D Load CalculationsData Visualizer load design

Integrations 2 across 2 categories

Productivity 1
Autodesk Revit Native
Industry-Specific 1
Energy Star Native

Pricing

Model
Subscription
Starting at
Contact for pricing
